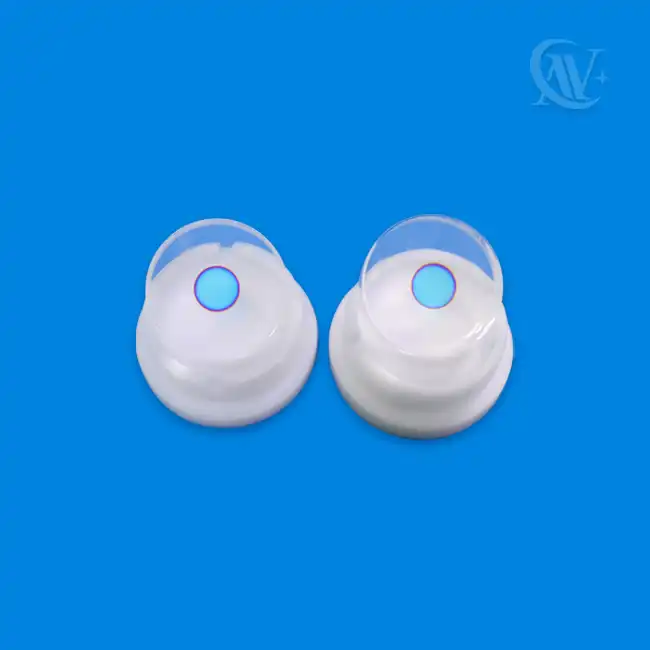

D12.7 Super High Reflective Spherical Mirror

① Dimension
1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
② Kickoff size:φ7.5-45
③ Coating area size: conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
④ Curvature: SR=500-8000(customize)，curvature accuracy±0.05%
⑤ Surface accuracy: λ/2-λ/10@632.8nm
⑥ Spherical accuracy:30"-3′
⑦ Roughness: Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑧Coating requirement: wavelength 632nm-1550nm, reflection ≥99.999%, loss 2-6ppm, transmission 3-5ppm
Back anti-reflection;
⑦ Material:ULE, fused silica,zerodur
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Power laser, high power laser, high precision optical inspection

Send Inquiry Download

Product Description

D12.7 Super High Reflective Spherical Mirror Manufacturer And Supplier

Xi'an SNP Precision Optics CO., LTD is a leading manufacturer and supplier of D12.7 Super High Reflective Spherical Mirrors. Our advanced manufacturing processes and stringent quality control ensure superior reflectivity, surface accuracy, and durability. Trust SNP for your high-precision optical needs.

D12.7 Super High Reflective Spherical Mirror Introduction

The D12.7 Super High Reflective Spherical Mirror represents the pinnacle of optical engineering. This compact yet powerful component is essential for a wide range of advanced applications in laser technology, precision instrumentation, and cutting-edge research. With its exceptional reflectivity and carefully crafted spherical surface, this mirror offers unparalleled performance for your most demanding optical systems. Designed to meet the exacting standards of modern photonics, our product boasts an impressive reflectivity of ≥99.999% across a broad spectral range. Its ultra-smooth surface, achieved through our proprietary polishing techniques, ensures minimal scattering and maximum efficiency in your optical setups.

Parameter

Parameter	Specification
Dimension	1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
Kickoff size	φ7.5-45
Coating area	conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
Curvature	SR=500-8000 (customizable), accuracy ±0.05%
Surface accuracy	λ/2-λ/10@632.8nm
Spherical accuracy	30"-3'
Roughness	Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
Reflectivity	≥99.999% (632-1550nm)
Loss	2-6ppm
Transmission	3-5ppm
Material	ULE, fused silica, zerodur

Applications of product

Our D12.7 Super High Reflective Spherical Mirror excels in various high-tech applications:

Advanced laser systems

Optical frequency combs

Precision interferometry

Quantum optics experiments

High-power laser cavities

Spectroscopy and sensing

Optical communications

Aerospace and defense technologies

Why Choose Our product?

Unmatched Quality: Our production plants house cutting - edge machinery like high - precision grinding and polishing equipment, all operating under strict quality protocols. Multiple in - line inspections, using advanced optical measuring instruments, are carried out at every production stage.

Customization: Whether you need a mirror with a unique spherical or aspherical curvature for a specialized optical system, or a custom coating to enhance reflectivity or transmission at particular wavelengths, our experienced engineers are here to help. They use advanced CAD/CAM software to design and simulate the perfect solution, and our flexible manufacturing lines can bring your vision to life, no matter how complex the customization needs may be.

Technical Expertise: From the initial concept phase, where they offer in - depth consultations on choosing the most suitable optical components and designs for your application, to post - installation troubleshooting and maintenance advice, our experts are with you every step of the way.

product-1-1

Frequently Asked Questions

Q: Can you customize the D12.7 Super High Reflective Spherical Mirror for specific wavelengths?
A: Absolutely! We can tailor the mirror's coating to optimize performance for your desired wavelength range.

Q: What is the expected lifespan of these mirrors?
A: With proper handling and maintenance, our mirrors can maintain their high performance for many years, even in demanding applications.

Q: Do you offer bulk pricing for large orders?
A: Yes, we provide competitive pricing for bulk orders. Please contact our sales team for a customized quote.

Q: How do you ensure the quality of each mirror?
A: Each mirror undergoes rigorous testing using advanced equipment like Zygo profilometers and high-power depth detection microscopes.

Contact Us

Ready to elevate your optical systems with our D12.7 Super High Reflective Spherical Mirror? Contact our expert team today at xachaona@163.com for personalized assistance and to discuss your specific requirements. Let's collaborate to push the boundaries of optical technology together!
