Super Low Loss Flat Concave Mirror

① Dimension
1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
② Kickoff size:φ7.5-45
③ Coating area size: conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
④ Curvature SR=500-8000(customize)，curvature accuracy±0.05%
⑤ Surface accuracy: λ/ 8@632.8nm
⑥ Spherical accuracy:30"-3′
⑦ Roughness: Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑧Coating requirement: wavelength 420nm-3000nm, reflection ≥99.999%, loss 2-6ppm, transmission 3-5ppm
Back anti-reflection;
⑦ Material:Calcium fluoride
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Laser gyro, high power laser, super stable laser, high precision optical detection

Send Inquiry Download

Product Description

Your Premier Super Low Loss Flat Concave Mirror Manufacturer

At Xi'an SNP Precision Optics CO., LTD, we take pride in our cutting-edge Super Low Loss Flat Concave Mirrors. Our advanced manufacturing processes and stringent quality control ensure unparalleled performance, making us the go-to supplier for industries demanding the highest precision in optical components.

Super Low Loss Flat Concave Mirror Introduction

Super Low Loss Flat Concave Mirrors represent the pinnacle of optical engineering, combining exceptional reflectivity with precise curvature. These mirrors are essential components in various high-tech applications, from laser systems to advanced scientific instruments. Our mirrors boast an incredibly low loss rate, typically between 2-6 parts per million (ppm), ensuring maximum efficiency in your optical setups. What sets our mirrors apart is the innovative ion beam sputtering (IBS) coating technology we employ. This cutting-edge process allows us to create ultra-smooth surfaces with atomic-level precision, resulting in mirrors that offer superior performance in demanding environments.

Parameters of Our product

Parameter	Specification
Dimensions	1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
Kickoff size	φ7.5-45mm
Coating area	Customizable (standard D12.7: 7.5mm, D25: 10mm)
Curvature	SR: 500-8000 (customizable), accuracy: ±0.05%
Surface accuracy	λ/8 @ 632.8nm
Spherical accuracy	30"-3'
Roughness	Ra 0.12nm (Zygo profilometer, 173x173μm area)
Reflection	≥99.999% (420-3000nm)
Transmission	3-5ppm
Material	Calcium fluoride (customizable)

Applications of product

Our precision - engineered mirrors find applications in:

Laser gyroscopes for navigation systems, where their ultra - smooth surfaces and high reflectivity are crucial for accurately measuring angular rates. This enables seamless navigation in aircraft, ships, and unmanned aerial vehicles, ensuring precise course - keeping and orientation.

High - power laser systems for industrial and research use. In industrial settings, they can withstand the intense energy of lasers used in cutting, welding, and drilling thick materials. In research, they play a vital role in experiments like those in high - energy physics, allowing for the efficient manipulation of laser beams.

Super - stable lasers for time and frequency standards. The mirrors' excellent flatness and stability contribute to maintaining the integrity of laser frequencies, which is fundamental for atomic clocks. These accurate time - keeping devices are essential for global communication networks and satellite - based positioning systems.

High - precision optical detection and measurement equipment. Whether it's detecting trace amounts of chemicals in environmental monitoring or measuring the minute displacements in micro - electromechanical systems (MEMS), our mirrors enhance the sensitivity and accuracy of these systems. They also prove invaluable in advanced microscopy, enabling the clear visualization of biological samples at the cellular level and the inspection of nanostructures in semiconductor manufacturing.

Why Choose Our product?

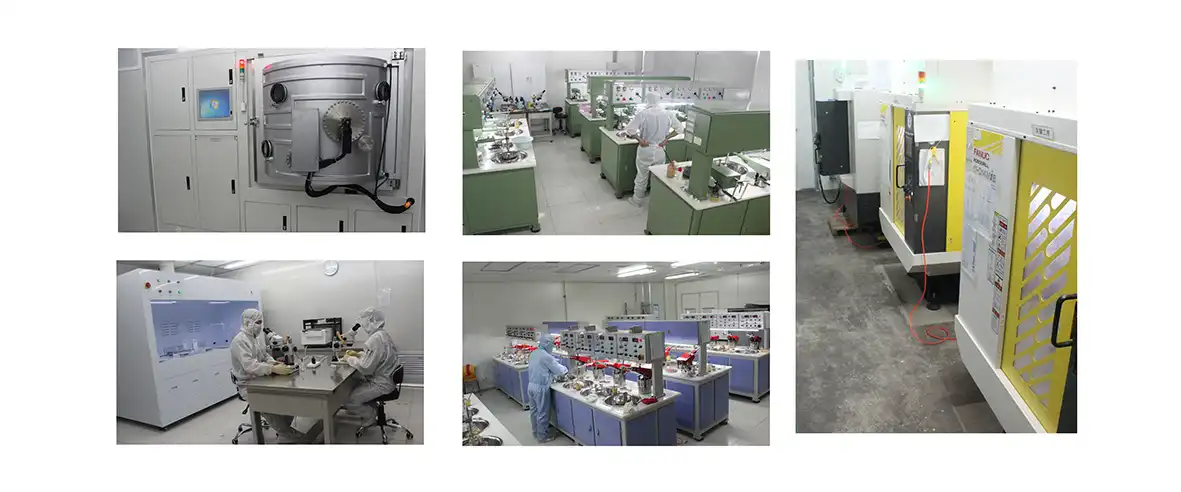

Unmatched Quality: Our state-of-the-art facilities and rigorous quality control ensure consistent, high-performance mirrors.

Customization: We tailor our mirrors to your specific requirements, offering flexibility in design and specifications.

Technical Expertise: Our team of optical engineers provides expert consultation to help you select the perfect mirror for your application.

Reliability: With our GJB9001C-2017 certification, you can trust in the reliability and consistency of our products.

Innovation: As a provincial-level "Specializing Ultra New" enterprise, we're at the forefront of optical technology innovation.

product-1-1

Frequently Asked Questions

Q: Can you produce product with custom specifications?
A: Absolutely! We specialize in customizing our mirrors to meet your unique requirements.

Q: What is the typical lead time for your Super Low Loss Flat Concave Mirrors?
A: Lead times vary based on specifications and quantity, but we strive to offer the fastest turnaround in the industry.

Q: Do you offer any certifications or test reports with your mirrors?
A: Yes, we provide detailed test reports and certifications for all our product.
