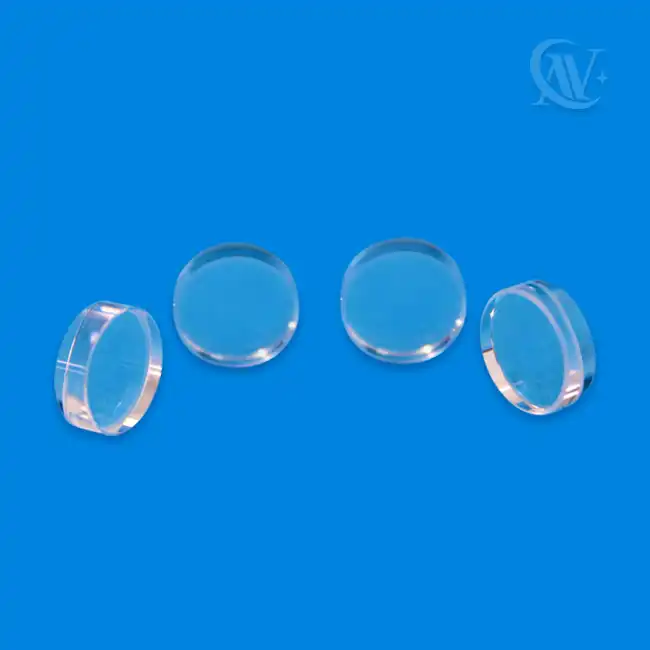

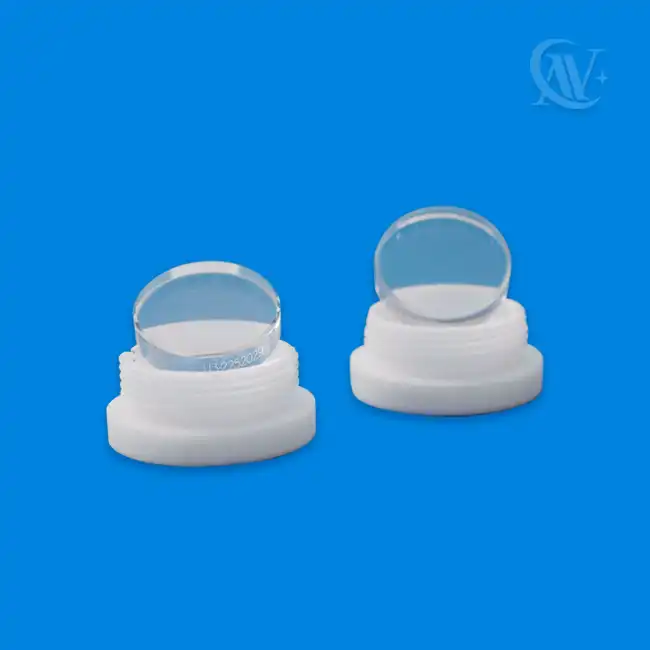

Super Smooth Mirror Substrate

① Dimension D=φ10-φ100mm (tolerance ±0.1),H=3-30mm (tolerance ±0.5)
②Surface accuracy: λ/2-λ/ 10@632.8nm
③ Parallel error: <15"
④ Roughness: single-side Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑤ Material: ULE, fused silica,zerodur, sapphire, K9, single crystal silicon;
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Laser gyro, high power laser, superstable laser, high precision optical inspection, semiconductor manufacturing, semiconductor inspection

Send Inquiry Download

Product Description

Super Smooth Mirror Substrate Manufacturer And Supplier

Xi'an SNP Precision Optics CO., LTD is a leading manufacturer and supplier of Super Smooth Mirror Substrates. Our advanced manufacturing processes and state-of-the-art facilities enable us to produce high-quality, ultra-precise optical components. Xi'an SNP's product offer superior surface accuracy, exceptional flatness, and unparalleled roughness characteristics, making them the preferred choice for demanding optical applications.

Super Smooth Mirror Substrate Introduction

Super Smooth Mirror Substrate is the foundation of high-performance optical systems, crucial for applications requiring extreme precision and stability. These meticulously crafted components are designed to meet the most stringent requirements in industries such as aerospace, laser technology, and advanced scientific research. At Xi'an SNP, we specialize in producing product that push the boundaries of optical performance. Our substrates are characterized by their exceptional surface smoothness, measured in angstroms, and their ability to maintain stability under various environmental conditions. Whether you're developing cutting-edge laser systems, high-precision optical instruments, or advanced scientific equipment, our product provide the perfect foundation for your innovations.

Parameters

Specification	Value
Dimension	1) D=φ12.7-φ50.8mm (tolerance ±0.1), H=4-8mm (tolerance ±0.5) 2) D50.8-φ100mm (tolerance ±0.1), H≥D/8 (tolerance ±0.5)
Surface Accuracy	λ/2-λ/10@632.8nm
Parallel Error	<15"
Roughness	Single-side Ra0.12nm (Zygo profilometer), test area 173*173um full frequency measurement
Materials	ULE, fused silica, zerodur, sapphire, K9, single crystal silicon

Note: Custom specifications available upon request.

product-1-1

Applications

Our product find critical applications in:

Laser Gyroscopes
High-Power Laser Systems
Super-Stable Laser Cavities
High-Precision Optical Inspection Equipment
Semiconductor Manufacturing
Advanced Scientific Research Instruments

Why Choose Us?

Industry - Leading Precision: Our Super Smooth Mirror Substrates boast some of the lowest roughness values in the industry. Utilizing advanced polishing techniques and high - grade materials, we achieve surface roughness levels that are often a fraction of what competitors offer.
Customization Capabilities: We tailor our products to meet your specific requirements. Whether you need a unique size for a compact optical device, a specialized curvature for a laser resonator, or a custom coating to enhance reflectivity at certain wavelengths, our experienced engineers collaborate closely with you.
Comprehensive Quality Control: We use sophisticated instruments like atomic force microscopes to measure surface roughness at the nanoscale and interferometers to verify surface flatness. Environmental stress tests, including temperature and humidity variations, are also conducted to guarantee the substrate's reliability in real - world conditions.
Advanced Manufacturing Facilities: Our clean rooms maintain a controlled environment with extremely low particle counts, preventing any contamination during the manufacturing process. The high - precision machinery, such as computer - controlled grinding and polishing equipment, allows for precise shaping and finishing of the substrates, resulting in products of the highest standard.
Expert Technical Support: Our team of optical engineers provides unparalleled support throughout your project. From the initial consultation, where they help you select the most suitable mirror substrate for your application, to post - installation troubleshooting, our experts are with you every step of the way.

FAQ

Q: What makes your product superior?
A: Our substrates offer industry-leading surface smoothness and stability, crucial for high-precision optical applications.

Q: Can you produce custom-sized product?
A: Absolutely. We can customize dimensions and specifications to meet your unique requirements.

Q: What materials do you use for Super Smooth Mirror Substrates?
A: We offer a range of materials including ULE, fused silica, zerodur, sapphire, K9, and single crystal silicon.

Q: How do you ensure the quality of your product?
A: We employ advanced testing equipment and adhere to strict quality control procedures throughout the manufacturing process.

Contact Us

Ready to elevate your optical systems with our Super Smooth Mirror Substrate? Contact our expert team today to discuss your requirements and discover how we can support your next project.
