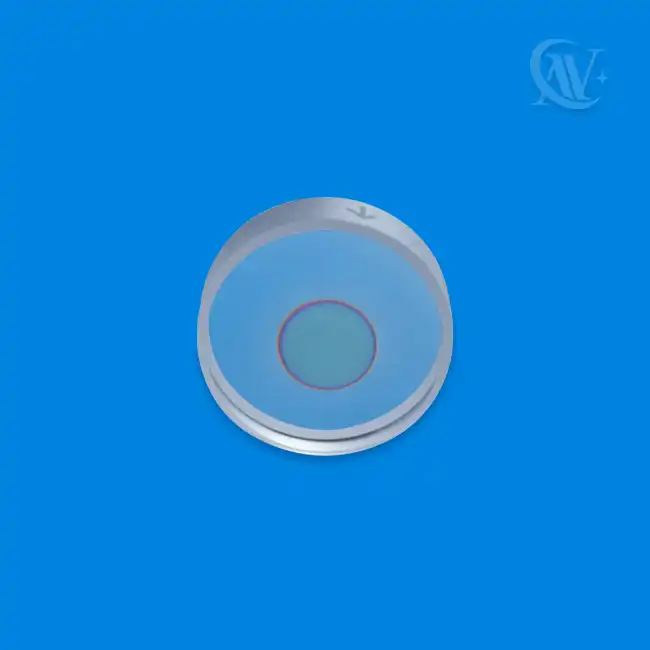

Sapphire Super Low Loss Flat Concave Mirror

① Dimension
1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
② Kickoff size:φ7.5-45
③ Coating area size: conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
④ Curvature: SR=500-8000(customize)，curvature accuracy±0.05%
⑤ Surface accuracy: λ/ 8@632.8nm
⑥ Spherical accuracy:30"-3′
⑦ Roughness: Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑧Coating requirement: wavelength 420nm-3000nm, reflection ≥99.999%, loss 2-6ppm, transmission 3-5ppm
Back anti-reflection;
⑦ Material:sapphire
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Super stable laser, high precision optical detection

Send Inquiry Download

Product Description

Sapphire Super Low Loss Flat Concave Mirror Manufacturer And Supplier

Xi'an SNP Precision Optics CO., LTD is a leading manufacturer and supplier of Sapphire Super Low Loss Flat Concave Mirrors. Our advanced manufacturing processes and strict quality control ensure superior performance, durability, and precision. With our state-of-the-art facilities and expert team, we deliver top-tier optical solutions for demanding applications.

Sapphire Super Low Loss Flat Concave Mirror Introduction

When it comes to high-performance optical systems, our Sapphire Super Low Loss Flat Concave Mirror stands out as a game-changer. This precision-engineered component combines the exceptional durability of sapphire with an ultra-smooth surface and advanced coating technology. The result? A mirror that delivers outstanding reflectivity, minimal losses, and superior thermal stability. These mirrors are designed to meet the exacting needs of industries where precision and reliability are paramount. Whether you're working on cutting-edge laser systems, spectroscopy equipment, or advanced imaging technologies, our product provides the performance you need to push the boundaries of what's possible.

Parameters

Specification	Value
Dimension	1）D=φ12.7-φ50.8mm（tolerance±0.1），H=4-8mm D:H＞4:1(tolerance±0.5） 2）D50.8-φ100mm（tolerance±0.1），H=10-25mm D:H＞4:1(tolerance±0.5）
Kickoff size	φ7.5-45
Coating area size	conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
Curvature	SR=500-8000 (customizable), accuracy ±0.05%
Surface accuracy	λ/8 @ 632.8nm
Spherical accuracy	30"-3′
Roughness	Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
Coating	Reflection ≥99.999%, loss 2-6ppm, transmission 3-5ppm
Wavelength range	420nm-3000nm
Material	Sapphire

Applications of Sapphire Super Low Loss Flat Concave Mirror

Our Sapphire Super Low Loss Flat Concave Mirrors excel in various high-tech applications:

Super-stable laser systems

High-precision optical detection

Aerospace and defense technologies

Advanced manufacturing processes

Cutting-edge research facilities

Why Choose Our Sapphire Super Low Loss Flat Concave Mirror?

Unparalleled Quality: Starting from the careful selection of premium raw materials, every step, from initial shaping to final polishing, is strictly monitored. Multiple quality checks are integrated, with advanced measuring tools verifying surface flatness, reflectivity, and optical clarity at sub - micron levels.

Customization Options: Whether you need a unique mirror shape for a specialized optical instrument, a custom coating to optimize light interaction, or a particular size for a compact device, our experienced engineers use advanced design software to create personalized blueprints.

Technical Expertise: Our team, consisting of skilled physicists and engineers, can offer in - depth consultations on choosing the right mirror type for your application. During production, we keep you updated on progress, and post - delivery, we're available for installation guidance and any technical troubleshooting.

Reliable Partner: Our streamlined production management system allows us to handle bulk requests efficiently. With a well - established supply chain, we ensure a steady flow of materials, and our logistics team coordinates seamless shipping to meet your project deadlines.

product-1-1

FAQ

Q: What makes sapphire an ideal material for these mirrors?
A: Sapphire offers exceptional hardness, thermal stability, and optical clarity, making it perfect for high-performance applications.

Q: Can you provide mirrors with custom specifications?
A: Absolutely! We specialize in creating tailored solutions to meet your unique needs.

Q: What's the typical lead time for bulk orders?
A: Lead times vary based on specifications and quantity. Contact us for a precise estimate for your project.
