Long Strip Spherical High Reflective Mirror
② Curvature is customized according to user's requirements
1) Curvature R500-R8000(all above sizes can meet )
2) Curvature R10- R500(need meet L > R,W > R)
Spherical eccentricity ≤3′
③ Surface accuracy is better than λ/4
④ Defect are better than 40/20, roughness is better than 0.15nm
⑤ Material: zerdour, fused silica, ULE, single scystab, sapphire
⑥Coating requirements: wavelength range 420-3000nm, transmittance, reflectivity, incidence angle, loss and other indicators can be customized according to user's needs
Note: The specific indicators are not limited to the above scope and can be customized according to user's needs.
- Product Description
Your Trusted Long Strip Spherical High Reflective Mirror Manufacturer And Supplier
At Xi'an SNP Precision Optics, we specialize in crafting superior Long Strip Spherical High Reflective Mirrors. Our advanced manufacturing processes and stringent quality control ensure unparalleled precision and performance for your optical systems.
Introduction to product
Long Strip Spherical High Reflective Mirrors is essential components in various high-tech applications, offering exceptional reflectivity and precision in a unique elongated form factor. These mirrors combine the benefits of spherical optics with an extended linear design, making them ideal for specialized beam shaping and redirection in advanced optical setups. Our product stand out for their superior surface quality, customizable curvature, and high damage threshold. Whether you're developing cutting-edge laser systems, precision measurement equipment, or advanced imaging devices, our mirrors provide the performance and reliability you need.
Parameters
| Feature | Specification |
|---|---|
| Length (L) | L=10mm-250mm, W=10mm-150mm, H=3mm-50mm, (tolerance±0.1; L:W > 10:1; L:H > 8:1) |
| Curvature Range | R10 - R8000mm |
| Spherical Eccentricity | ≤3′ |
| Surface Accuracy | Better than λ/4 |
| Surface Quality | 40/20 scratch-dig |
| Surface Roughness | Better than 0.15nm |
| Materials | Zerodur, Fused Silica, ULE, Single Crystal, Sapphire |
| Coating Wavelength Range | 420-3000nm |
Note: Custom specifications available upon request.
Applications of product
Our Long Strip Spherical High Reflective Mirrors find applications in:
- High-power laser systems
- Precision optical measurement devices
- Advanced imaging and diagnostic equipment
- Aerospace and defense optical systems
- LiDAR and autonomous vehicle sensor technology
- Telecommunications and fiber optic networks
- Quantum optics research
Why Choose Xi'an SNP Precision Optics for Your product?

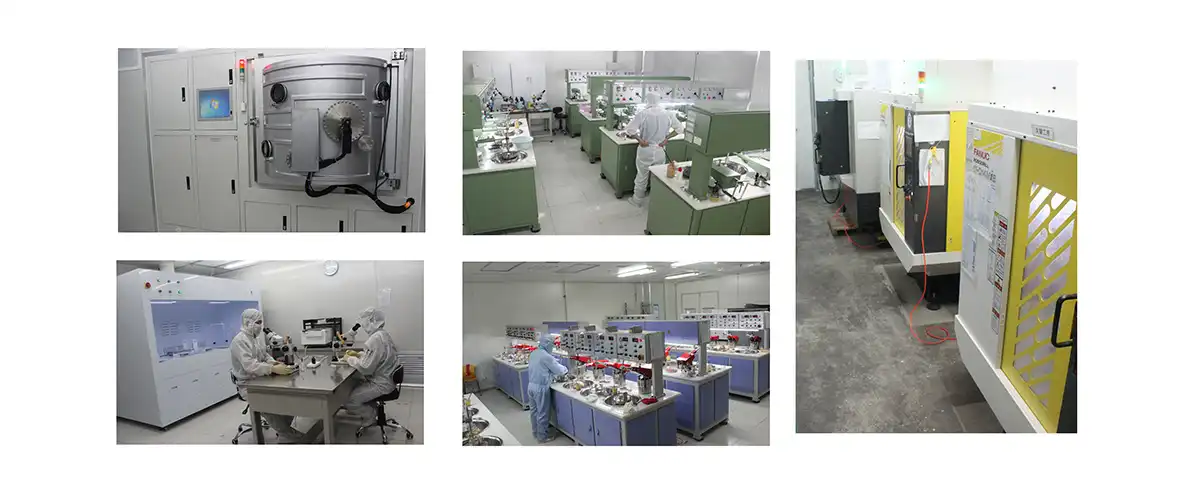

Cutting - edge manufacturing facilities: From high - speed grinding and polishing machines to computer - controlled laser - etching devices, every piece of equipment is carefully calibrated to ensure the highest quality output.
Rigorous quality control processes: During the manufacturing process, in - line inspections are carried out at critical stages to detect any potential defects early. Final products are subjected to comprehensive optical and mechanical tests using sophisticated measuring instruments, ensuring that only the highest - quality items reach our customers.
Customization capabilities to meet your exact specifications:Whether you need a specific shape, size, or optical property for your precision optics, we use advanced design software and simulation tools to create customized solutions. We work closely with you throughout the design process, providing regular updates and incorporating your feedback to ensure the final product meets your expectations.
Extensive experience in precision optics:Our team has worked on a diverse range of projects, from developing optics for high - energy laser systems to manufacturing components for medical imaging devices. This wealth of experience allows us to anticipate challenges and find innovative solutions, ensuring the success of your projects.
FAQ
Q: Can you provide samples of product?
A: Yes, we offer sample mirrors for testing and evaluation purposes. Please contact our sales team for more information.
Q: What is the typical lead time for custom product?
A: Lead times vary depending on specifications and quantity. Generally, we aim for 4-6 weeks for custom orders. Contact us for a precise estimate.
Q: Do you offer technical support for integrating these mirrors into our systems?
A: Absolutely. Our team of optical engineers is available to assist you with technical queries and integration challenges.
Contact Us
Ready to elevate your optical systems with our Long Strip Spherical High Reflective Mirror? Reach out to our team at xachaona@163.com for quotes, technical discussions, or to place an order. Let's work together to bring your optical innovations to life!
